What is Medium Voltage Switchgear?

Electrical power distribution forms a complex network designed to efficiently transmit electricity from generation sources to the end users. And at the heart of this intricate network is switchgear, which is essential in controlling and safeguarding the electrical grid. Medium Voltage (MV) switchgear, which operates between 1 kV and 36 kV, plays a crucial role in the management of electrical power across various infrastructures, ensuring safe and reliable distribution crucial for industrial, commercial, and utility applications. In fact it is widely used in all sectors ranging from distribution centers and power generation to railway and industrial facilities.

Here, we will discuss everything you need to know about medium voltage switchgears and more.

Understanding What is Medium Voltage Switchgear

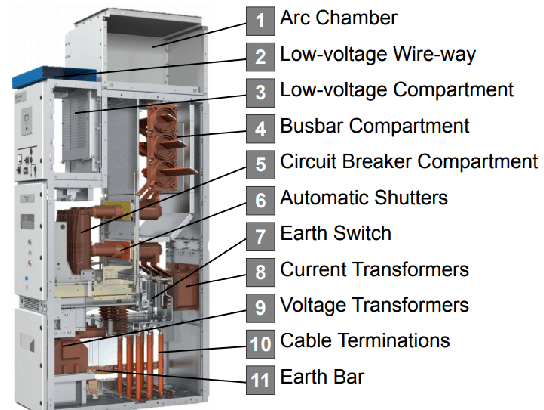

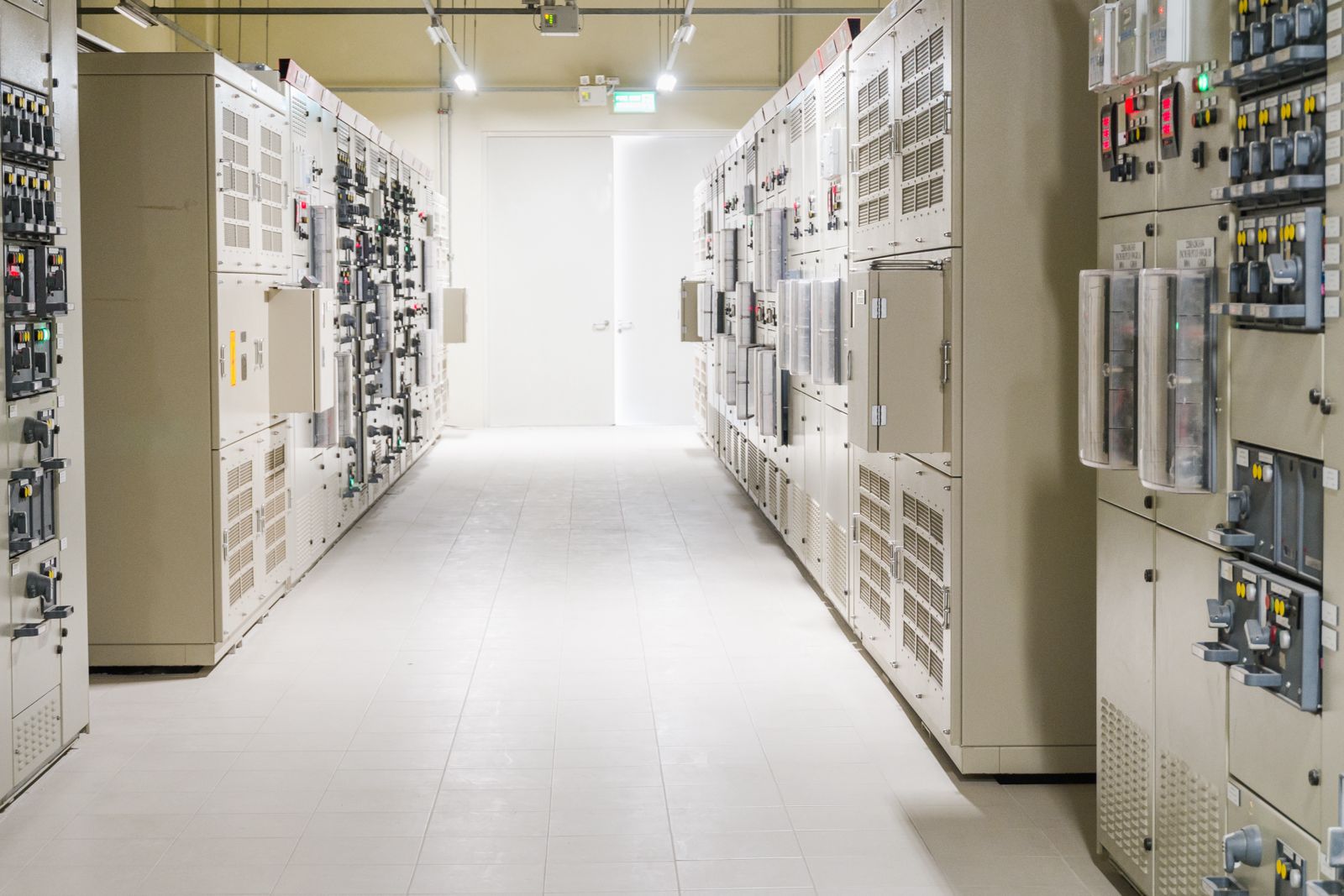

Medium Voltage Switchgear comprises an assembly of electrical components engineered to manage, protect, and isolate electrical circuits within the specified voltage range, enhancing the reliability and safety of power distribution systems. This switchgear includes several critical components:

• Circuit Breakers: These are designed to interrupt the flow of electricity in case of an overload or short circuit and are categorized by their interruption medium—air, vacuum, or sulfur hexafluoride (SF6). Air circuit breakers are typically larger and used for lower voltage applications, whereas vacuum circuit breakers offer higher efficiency with a smaller footprint. SF6 circuit breakers, known for their excellent insulating properties, are used where space constraints and environmental considerations are pivotal.
• Disconnectors: These provide a visible isolation point that ensures safety during maintenance by completely de-energizing parts of the system.

• Instrument Transformers: These transformers play a vital role in measuring electrical parameters and ensuring safety by stepping down voltages to levels that can be safely managed for metering, protection, and control.
• Protective Relays: These sophisticated devices help detect abnormal conditions such as overloads or faults and activate the circuit breakers to interrupt the circuit, thus preventing potential damage and ensuring continuity of service.
• Busbars: These robust conductors distribute electricity within the switchgear to multiple outgoing feeders, essential for effective power distribution and prevention of electrical accidents.
• Enclosures: These protect the internal components from environmental and mechanical impacts, ensuring the longevity and reliability of the switchgear.

Types of Medium Voltage Switchgear

The design of medium voltage switchgear is engineered to meet diverse environmental and operational demands, ensuring tailored solutions across various settings. Here’s a deeper look into the types of medium voltage switchgear, each optimized for specific conditions and applications:

Metal-clad Switchgear is predominantly used indoors. This type of switchgear features compartments that are segregated by grounded metal barriers. These partitions enhance the system’s protection against electrical faults by containing any sparks or arcs within the isolated section, thus preventing them from spreading throughout the system. This design is particularly beneficial in industrial environments where the demands for robustness and reliability are paramount. The sturdy construction also allows for sustained performance under the rigorous conditions of manufacturing plants, power stations, and other industrial facilities where electrical hazards are a significant concern.

Pad-mounted Switchgear is designed for outdoor use and is known for its compact and tamper-proof construction. It is housed in a lockable enclosure that integrates essential components such as transformers, fuses, and switches. The secure, weather-resistant design makes it ideal for installation in suburban or rural areas where equipment might be exposed to environmental elements and where space and security are crucial considerations. This type of switchgear is often selected for its ease of access and minimal footprint, which simplifies maintenance and installation in less controlled environments compared to urban settings.

Gas-insulated Switchgear (GIS) is a significant advancement in switchgear design that utilizes sulfur hexafluoride (SF6) gas to insulate conductors and quench arcs. The main advantage of GIS is its compact design, which allows for the installation in space-constrained areas. This type is particularly advantageous in urban environments where real estate is expensive and environmental conditions can be challenging. Despite the higher initial cost, the long-term benefits of GIS include not only superior reliability and safety but also a reduced physical footprint and lower maintenance needs. GIS’s ability to perform reliably in adverse conditions without extensive physical infrastructure makes it a valuable option for critical applications in densely populated areas.

Applications of Medium Voltage Switchgear

The utility of medium voltage switchgear spans across various sectors. In manufacturing plants, it supports the heavy loads required by industrial machinery, ensuring stable operation and protection against electrical faults. Data centers, which are crucial for information processing and storage, rely on MV switchgear to maintain consistent power supply and protect sensitive computing equipment. Commercial buildings utilize it for centralized control and management of the building’s power needs, while renewable energy installations like wind farms and solar plants use switchgear to manage and regulate the intermittent power generated. The oil and gas industry, known for its harsh environments and demanding operational requirements, uses MV switchgear to ensure safety and reliability in power distribution.

Innovations in Medium Voltage Switchgear

Technological advancements have significantly reshaped the landscape of medium voltage switchgear, enhancing its functionality, design, and environmental impact. These innovations not only improve efficiency and reliability but also address the growing demand for environmentally sustainable and safer electrical infrastructure.

We’re witnessing new innovations in medium voltage switchgear technology such as:

Flexible Modular Design: Modular switchgear provides unparalleled flexibility and ease of installation. This design approach allows for tailored configurations to meet specific project demands and can adapt to changing requirements over time, which is particularly useful in dynamic industrial environments or expanding facilities.

Digital Switchgear Systems: This modern adaptation of switchgear incorporates comprehensive digital communication, monitoring, and control systems, facilitating more efficient and reliable power distribution. Digital switchgear enables remote operations, which significantly cuts down on the need for physical inspections, thereby reducing maintenance costs and improving operational safety by minimizing human interaction with high-voltage components.

Solid Insulated Switchgear: Moving away from traditional gas or liquid insulators, solid insulated switchgear uses solid materials for insulation. This switch not only mitigates the environmental risks associated with gas insulators, like SF6, but also reduces the overall maintenance requirements, as solid insulators are less prone to degradation and do not require refilling.

Advanced Safety Mechanisms: Contemporary medium voltage switchgear is equipped with advanced safety mechanisms, such as arc-flash protection systems, which drastically reduce the risk of accidents. These systems help to protect electrical equipment and personnel by quickly detecting and isolating fault conditions.

Predictive Maintenance: The integration of sensors and advanced data analytics transforms traditional maintenance approaches into predictive maintenance strategies. This technology enables the early detection of potential issues, allowing for timely interventions that prevent failures, reduce downtime, and lower maintenance costs.

Internet of Things (IoT) Compatibility: IoT-compatible switchgear enhances the connectivity of electrical systems, enabling seamless communication with other smart devices within a facility. This compatibility provides comprehensive data collection and analysis, offering valuable insights for optimized power management and strategic decision-making.
